Description
This avocado processing line consists of a bubble washing tank with roller elevator, brushing machine with high pressure water sprayers, air drying machine,single lane electronic weight sorting machine and central controller.
Features
Automatic, PLC control, set the weighing, logic and statistics as a whole.
Simple operation, high efficiency.
Specification
Model | FNQX-1 |
Process | Washing,drying,sorting |
Dimension | 27600*1040*1700mm |
Accuracy | ±2g |
Capacity | 25000pcs/h/lane |
Sizes/exits | 12 |
Brush Material | Nylon |
Power | 15.6kW, 380V, 50Hz |
Description

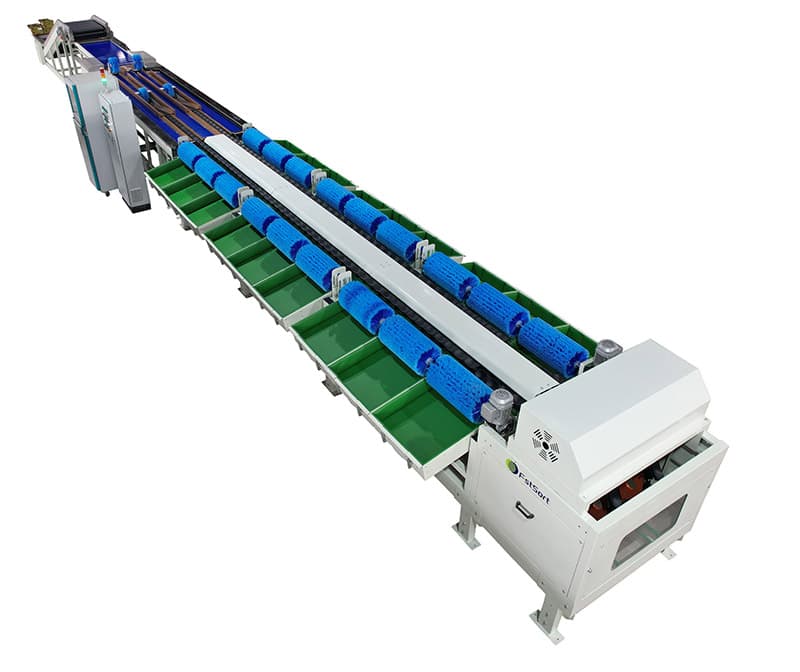

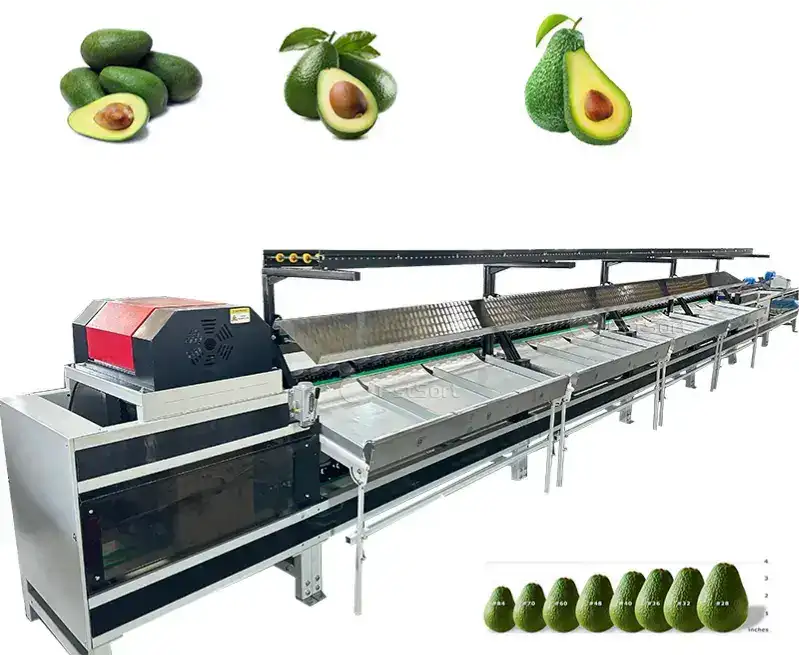

This Fstsort avocado electronic weight sorter consists of the feeding unit,weighing assembly,collection trays and control panel,also suitable for apples, peaches, oranges, citrus and so on.
Features
Accurate sorting
Various capacity
Friendly to avocados, no damage
Easy for installation and maintenance
Specification
Number of lanes | 2 |
Sorting type | weight |
Dimension | 14050*1850*1400mm |
Accuracy | ±2g |
Capacity | 25000pcs/h/lane |
Sizes/exits | 18 |
Brush Material | Nylon |
Power | 6.2kW, 380V, 50Hz |
Description

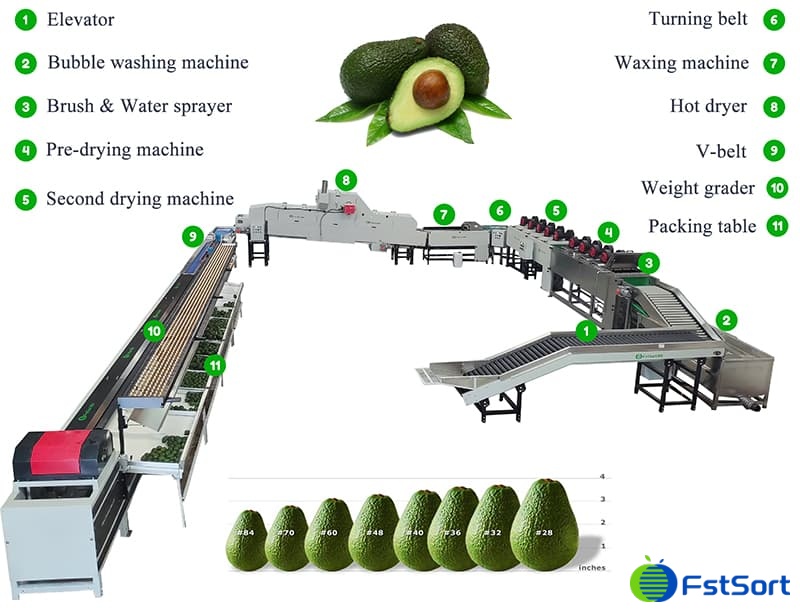

This Fstsort avocado processing line consists of a bubble washing tank with roller elevator, a brushing machine with high pressure water sprayers, an air drying machine, an electronic weight sorting machine and a central controller.
Material contacting product and water is stainless steel 304, other frame is painted steel.
Options
Sorter of one lane or two lanes
Waxing and hot air dryer before sorter
Exits at one side or two sides
Packing tables at exits
Specification
Model | FIAS-8000 |
Capacity | 50000 pcs/h |
Lanes | 2 |
Sizes/exits | 12 |
Quantity of brushes | 50 pieces |
Brush Material | Nylon |
Quantity of air dryers | 10 |
Dimension | 25780*1730*1700mm |
Power | 15.6kW, 380V, 50Hz |
Water Consumption | Average 5 tones/hr |

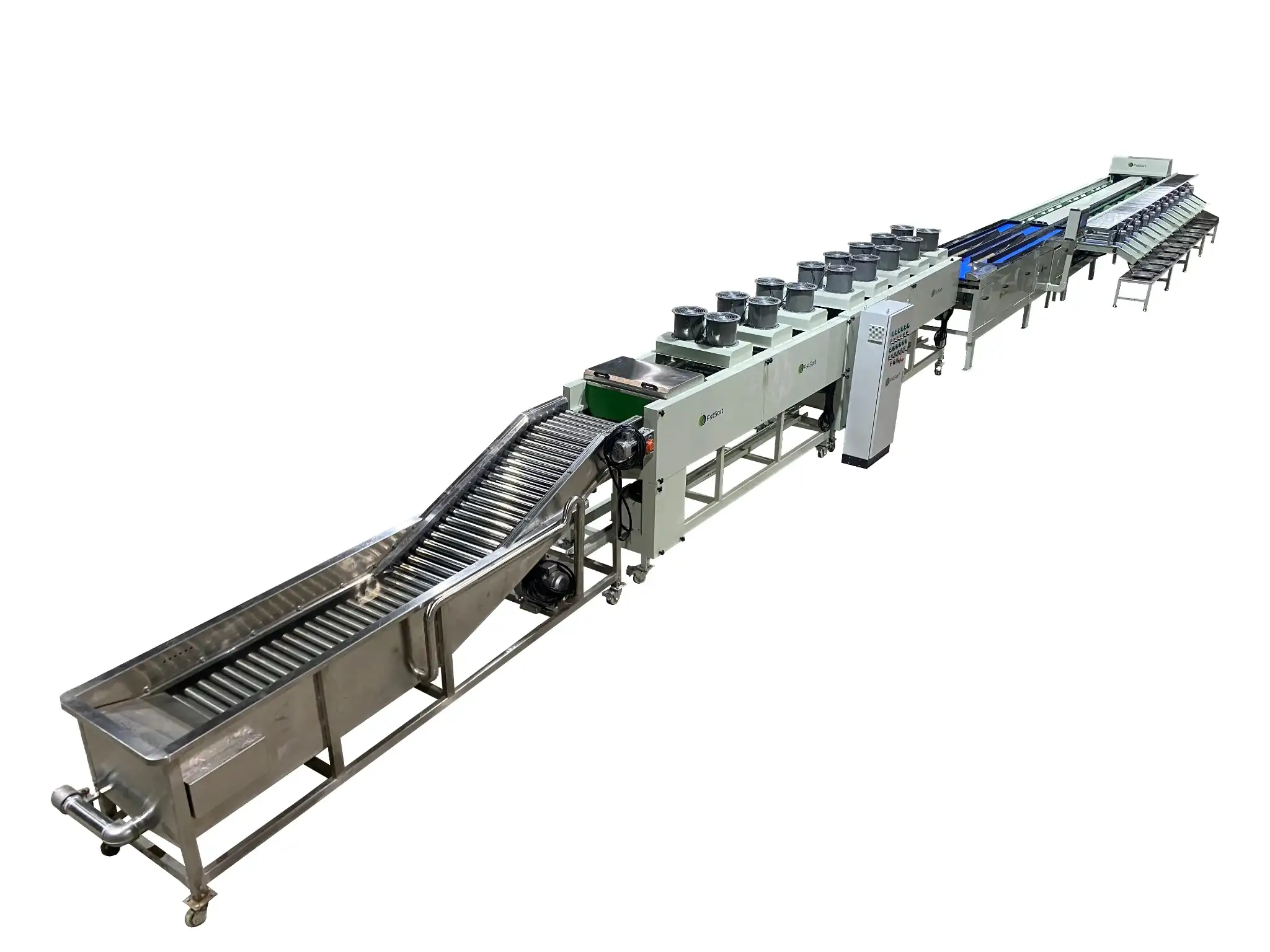

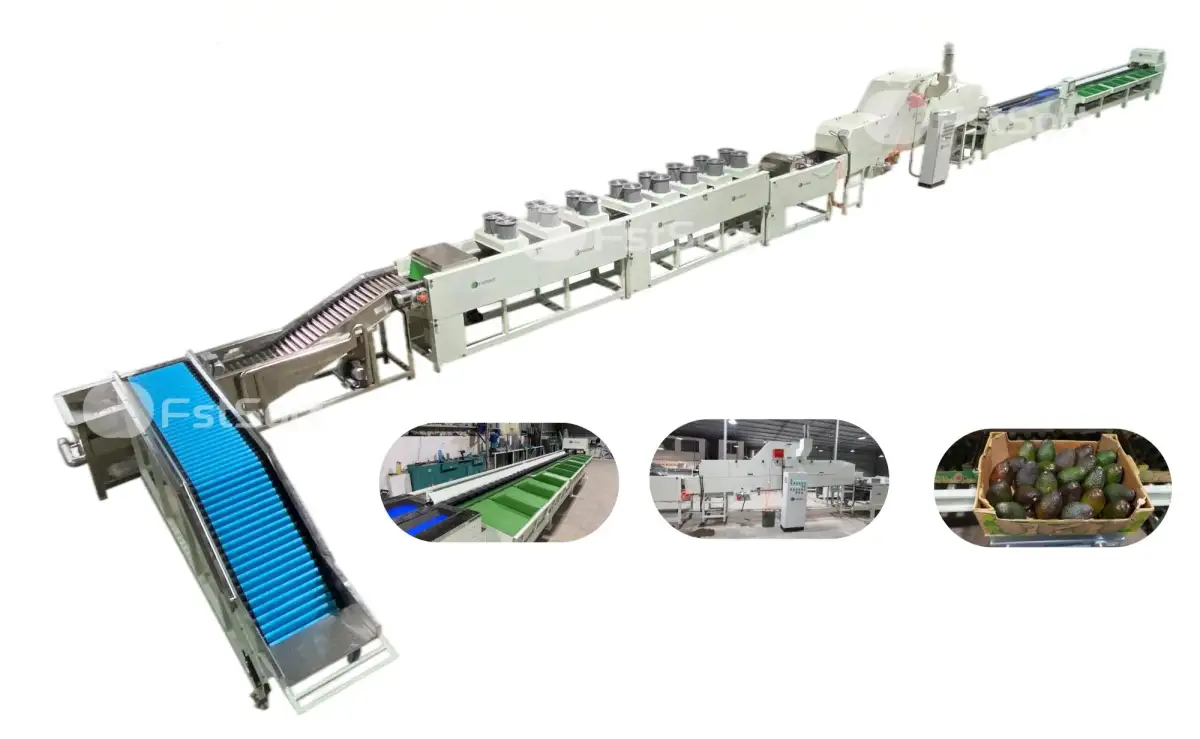

Avocado Washing Drying Waxing Grading Line
